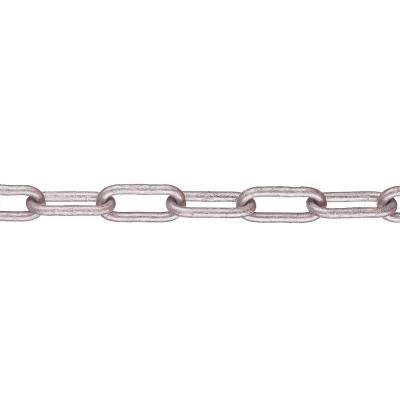

SM-STEEL Barrier Chains
Barrier chains - SM steel
The SM steel chain is a robust solution for cordoning off hazardous areas. It is aimed at industry, public institutions and event organizers. Its main benefit lies in the clear and safe demarcation of restricted areas.
Material and workmanship
The barrier chain is made of high-quality steel. The galvanised surface provides reliable protection against corrosion. This makes the chain suitable for long-term outdoor use.
Dimensions and adjustment
The chain is available in various lengths. It can be flexibly adapted to different barrier widths. Several chains can be linked together to secure larger areas.
Standards and safety
The SM steel chain meets the requirements of DIN 5685, a standard that guarantees material quality and load-bearing capacity. This makes the chain suitable for safety-relevant applications.
Two variants - the right solution for every application
Choose from two chain sizes with tested load capacity:
6 mm link thickness with link dimension 41 ×12 mm, bundle length 30m, test load 250 daN, tensile load 1,250 daN
8 mm link thickness with link size 52 × 15mm, bundle length 10m, test load 440 daN, tensile load 2,200 daN
Both variants are MNK quality chains. Each one is tested by the metre and meets the highest safety standards. For safety-relevant applications, we recommend planning in an additional safety reserve.
SM-STEEL Barrier Chains: Choose your version/model
For details of product SM-STEEL Barrier Chains, please refer to the table below listing all key features and versions.
If you wish to view a product data sheet of the selected version or model, click the product number.
