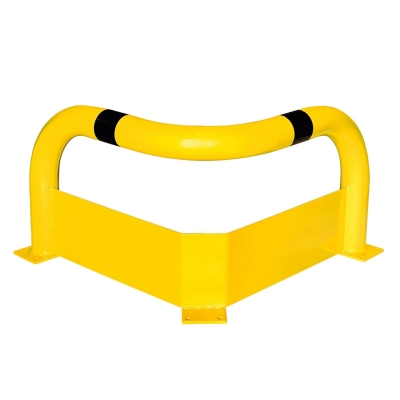

BLACK BULL Corner Guard XL with Under-run Protection

BLACK BULL Corner Protection Guard XL with Under-run Protection - Maximum protection against damage from heavy impacts.


Specifically developed for applications in which forklift trucks are heavily used. The BLACK BULL Corner Protection Guard XL with Under-run Protection provides extremely strong protection from damage to building structures and machinery and compliments our BLACK BULL Protection Guard XL range. The steel Under-run plate effectively stops forklift trucks intruding beyond the barrier line.


Extremely Strong: Manufactured in high quality, seamlessly bent, 108mm steel tube with 3.6mm wall thickness


Maximum Strength: The 4mm Under-run guard features a 'Z'-Bend to withstand extremely high impacts


TÜV-tested according to DGUV 208-061: Tested and certified according to current safety standards


Top Quality - Made in Germany: Manufactured from high quality steel




Finishes:

  • For Indoor Use - Powder coated yellow with black bands
  • For Outdoor Use - Hot dip galvanised and powder coated yellow with black bands



Fixing:


Bolting via baseplates

Sub-surface fixing available on request



Dimensions:

Tube Dia.: 108mm Ø
Wall Thickness: 3.6mm
Heights: 600 and 1,200mm
Width: 900 x 900mm
Baseplate: 200 x 140 x 10mm
Fixing Holes: 18mm Ø
Under-run Plate: Height 250 or 500mm, Material Thickness 4mm

BLACK BULL Corner Guard XL with Under-run Protection - Variants



Do you have questions about BLACK BULL Corner Guard XL with Under-run Protection?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

BLACK BULL Corner Guard XL with Under-run Protection
Height (mm)Width (mm)Depth (mm)Under-run Plate HeightFinishApplicationsWeight
(kg)
Article
600900900250powder coatedindoor 46.50 196.17.5787
hot dip galvanised and powder coatedoutdoor 196.17.5788
1,200500powder coatedindoor 74.50 196.17.5789
hot dip galvanised and powder coatedoutdoor 196.17.5790
AccessoriesDescriptionWeight
(kg)
Article
Rawl Bolts 14 x 110mm 0.20 109.18.268
Through Bolts 16 x 125mm 0.30 109.14.550
Composite Anchor M16/190 - Including threaded rod, nut, washer and adhesive cartridge 0.40 109.25.253
