BLACK BULL Impact Guard Rails XL

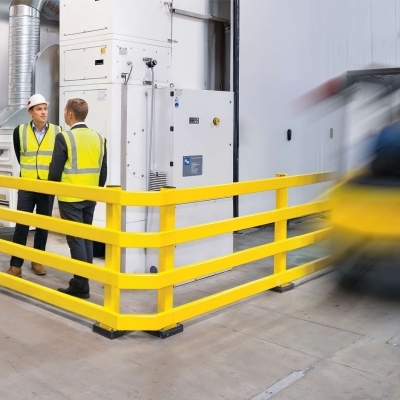

The BLACK BULL Impact Guard Rails XL protect machinery, conveyors and work areas from forklift and MHE impacts. Steel posts combined with 'C' section guard rails offer extensive protection without impairing site lines.
- Versatile system of posts and 'C' section guard rails
- 1,000mm high
- High quality steel provides maximum force absorption
- System can be extended or modified easily at any time
- Quick and easy 1 man assembly
- Bolt down
Specifications:
Post
- 1,000 x 80 x 80 x 3mm
- Indoor use, Powder coated Yellow with Black cap
- Fixings for 4 Guard Rails
- Baseplate 200 x 200 x 10mm
Rails
- 'C' section guard rail
- 100 x 40 x 3mm
- Indoor use, Powder coated Yellow
- Lengths: 1,000, 1,200, 1,500 and 2,000mm
Options:
- End Corner 'C' Section 45°
- Rails for Outside and Indoor corners
- Variable 90° und 180° corner section
Finishes:
- For Indoor use: Yellow Powder Coated Yellow (RAL 1023)
- For Outdoor use: Hot Dip Galvanised and Powder Coated Yellow (RAL 1023)
- Option: Plain Hot Dip Galvanised
Optional FLEX Mounting:
By the addition of a polyurethane pad that is UV, weather and temperature resistant. The pad enables the Guard Rails to deflect up to 10 degrees. This allows the railing system to absorb shocks and impacts whilst damage is reduced significantly. The pad increases the height of the Railing System by 40mm and is installed using 4 chemi-anchors per post.
Patent EP-2597 197A2
BLACK BULL Impact Guard Rails XL - Variants
