BLACK BULL FLEX+ Impact Protection Railing S-Line with Underrun Guard

  • Dynamic load absorption: Certified according to PAS 13:2017
  • Clear separation: securing passenger-vehicle traffic Areas
  • Additional under-run guard: Stops vehicles at ground Level
  • Two levels of security: No intrusion in pedestrian zones
  • Modular system: protection lines can be flexibly customised and Extended
  • Force absorption: energy absorption through elastic Deformation

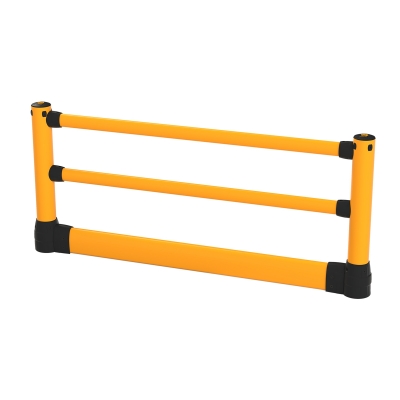

Flexible Impact Protection Railing S-Line with Underrun Guard
The BLACK BULL FLEX+ Impact Protection Railing S-Line with Underrun Guard is a reliable choice for personal protection wherever pedestrians and internal traffic meet and there are additional hazards at ground level. While conventional guardrails primarily protect at vehicle height, the integrated underride guard additionally secures the ground level - and thus prevents forks from entering pedestrian areas. It ensures safe separation of walkways, workplaces and traffic areas and is used in warehouses, logistics and production areas. The combination of S-Line guardrails and underrun protection creates a continuous protective line for personal safety - from the ground to standing height. Instead of rigid barriers, the system relies on controlled absorption: It absorbs impact energy, distributes forces across the entire protection line and then returns to its original shape automatically. This means that the protective function is retained even after an impact.

What happens in detail on impact?
Crossbars & posts
The polymer crossbars of the S-Line form a clearly visible protective line and prevent vehicles from entering pedestrian areas. The integrated underride guard additionally secures the floor level and protects against forks, tyres and collision damage. The posts absorb the transmitted forces and ensure stability along the entire safety line. The result: maximum personal protection, reduced risk of accidents, safe working areas.

Connections & junctions
The FlexLink connection technology distributes the forces evenly across the entire system. Point loads are avoided, individual components as well as the floor and anchor points are relieved. Result: Permanently stable safety lines without loose posts or consequential damage.

Base
The FLEX+ Base connects the posts to the Base ground anchor and forms an impact-resistant outer shell. It protects the internal screw connection and prevents damage to the tyres of industrial trucks. The result: high suitability for everyday use and reduced maintenance.

Base floor anchor
The FLEX+ Base ground anchor combines robust anchoring in concrete with force-absorbing rubber dampers. This design reduces the load on the screw connection, protects the substrate and ensures a permanently stable attachment - even with repeated approaches.

Multiple impacts? No problem.
FLEX+ is made for everyday use. The system remains functional, especially after repeated bumps. No permanent deformation. Durable plastic thanks to high elasticity. This significantly reduces downtimes and follow-up costs.

Typical application scenarios for the FLEX+ Impact Protection Railing S-Line with Underrun Guard
This solution is particularly suitable for areas with high pedestrian traffic and additional protection requirements at ground level: separation of walkways and traffic areas, protection of workstations along forklift routes, picking, assembly and crossing areas, use with mixed traffic of people and vehicles. A typical example is a warehouse with heavily frequented walkways along traffic routes. The FLEX+ S-Line impact protection guardrail with underrun protection reliably protects employees, creates clear structures and can be flexibly adapted or extended - seamlessly integrated into a comprehensive FLEX+ protection concept.

BLACK BULL FLEX+ Impact Protection Railing S-Line with Underrun Guard - Variants



Do you have questions about BLACK BULL FLEX+ Impact Protection Railing S-Line with Underrun Guard?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

BLACK BULL FLEX+ Impact Protection Railing S-Line WITH Under-run GuardDesignMaterialApplicationsFixtureTest Load (J)Overall height (mm)Overall Width (mm)Weight
(kg)
Article
Starter SetPolypropylene (PP)IndoorBolt Down~ 700011702642 43.42 205.17.9507
Extension Centre Set2438 33.19 205.17.9508
Extension Corner Set2438 33.19 205.17.9509
