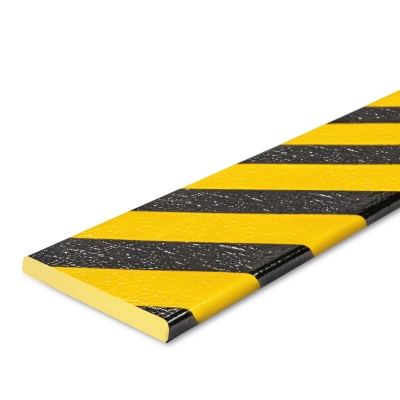

Protection Foam - Surface

TRAFFIC-LINE Impact Protection profiles provide both visual warning and safety cushioning to hard, unyielding objects.

  • Prevents injury and protects property.
  • Quick and easy to install.
  • High quality moulded sections.
  • Standard lengths of 1,000mm and 5,000mm.
  • Easily cut to length with sharp knife or fine saw blade.
  • Made from flexible age resistant polyurethane foam.
  • UV resistant yellow/black colours according to DIN 4844.
  • Temperature resistant from -40°C to + 90°C.
  • Fire resistant.
  • CFC and silicon free.
  • Suitable for internal and external applications.

Applications:

Internal and external machinery, racking, conveyers, vehicles, mobile trolleys, corners, columns, girders, production areas, transfer routes, hospitals, laboratories etc.

Installation:

Self-adhesive backed profiles can be permanently fixed to smooth, dust and grease-free surfaces.

Magnetic profiles are an innovative development of our PU foam Impact Protection profiles. The magnetic strips are an integral part of the profile. A simple solution for applications that do not require permanent protection, or areas that require regular operations such cleaning, painting etc.

Also available is WHITE Impact Protection where discrete protection is required.

Protection Foam - Surface - Variants

Productinfo Downloads:



Do you have questions about Protection Foam - Surface?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

TRAFFIC-LINE Impact Protection Foam, Trapeze

ColourFixtureLength (mm)Width (mm)Thickness (mm)Weight
(kg)
Article
yellow/blackself-adhesive10004035 0.90 422.23.025
magnetic10004040 0.70 422.26.582

TRAFFIC-LINE Impact Protaction Foam, SEMI-CIRCULAR

ColourFixtureLength (mm)Width (mm)Thickness (mm)Weight
(kg)
Article
yellow/blackself-adhesive10004028 0.80 422.22.446
yellow/blackmagnetic10004032 0.70 422.27.977
uni-colour whiteself-adhesive10004032 0.70 422.18.541
yellow/blackself-adhesive50004032 2.50 422.29.052
TRAFFIC-LINE Impact Protaction Foam, RectangleColourFixtureLength (mm)Width (mm)Thickness (mm)Weight
(kg)
Article
uni-colour whiteself-adhesive10006020 0.70 422.18.163
yellow/blackself-adhesive10006020 422.19.912
yellow/blackmagnetic10006020 422.20.678
yellow/blackwith 3 bores10006020 422.19.509
Yellow/BlackSelf-Adhesive100010010 0.80 422.17.8397
yellow/blackwith 4 bores50020020 1.20 422.15.592
yellow/blackself-adhesive50004011 2.40 422.27.694
yellow/blackself-adhesive50005020 2.70 422.29.669
yellow/blackself-adhesive500015020 9.90 422.28.090
