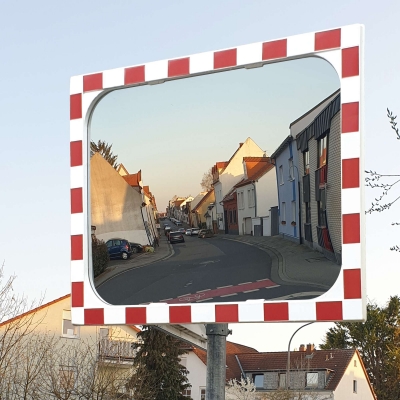

VIEW-ULTRA Sekurit Glass Traffic Mirror

This exceptionally high quality VIEW-ULTRA Sekurit Glass Traffic Mirror has been refined over the years to improve its performance.

  • Sekurit glass – strong and excellent image quality.
  • Even convex glass surface for minimal distortion.
  • Shock and impact resistant.
  • Highly visible red and white frame.
  • Easy installation on 76mm dia. post.
  • Heated versions available.
  • 5 year guarantee against manufacturing faults.

Applications:


Situations where high demands are required for optical quality, traffic regulation, logistics centres, warehouses, production processes etc.

Specifications:

  • Sizes (mm): 400 x 600, 600 x 800 and 800 x 1,000
  • Material: Toughened glass
  • Frame: Reflective Red/White border
  • Bracket: Adjustable to fit 76mm dia. post

Accessories:

  • 108mm diam Post Bracket
  • Heated mirror accessories

Versions/models of product VIEW-ULTRA Sekurit Glass Traffic Mirror:

For details of product VIEW-ULTRA Sekurit Glass Traffic Mirror, please refer to the table below listing all key features and versions.
If you wish to view a product data sheet of the selected version or model, click the product number.

Productinfo Downloads:



Do you have questions about VIEW-ULTRA Sekurit Glass Traffic Mirror?

Contact us via telephone (01453 852620), Fax (01453 852625) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

VIEW-ULTRA Glass Mirror (complete with fixings)

DesignHeight (mm)Width (mm)Max. observation distance from mirror (m)Weight
(kg)
Article
VIEW-ULTRA 14006006 10.00 240.15.611
VIEW-ULTRA 260080012 15.00 240.19.897
VIEW-ULTRA 3800100018 25.00 240.17.387
VIEW-ULTRA 1H (15W heater)4006006 11.00 240.15.372
VIEW-ULTRA 2H (30W heater)60080012 17.00 240.16.854
VIEW-ULTRA 3H (45W heater)800100018 28.00 240.17.948

Accessories

DescriptionWeight
(kg)
Article
VIEW-ULTRA Water Resistant Thermostat 1.00 245.12.536
VIEW-ULTRA Postclip Adaptor 4.00 245.11.059
Bracket for 108mm Diam Post Models 1, 2 5.00 245.17.933
Bracket for 108mm Diam Post for S-COMPACT Models 1,2 & 3 & VIEW-ULTRA Model 3 245.11.151
