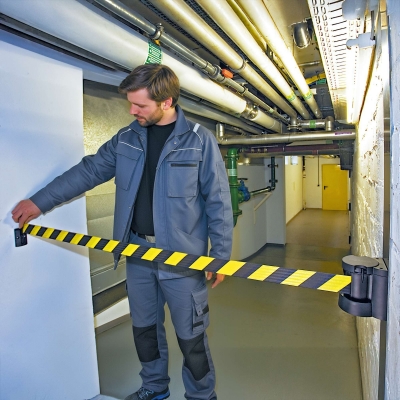

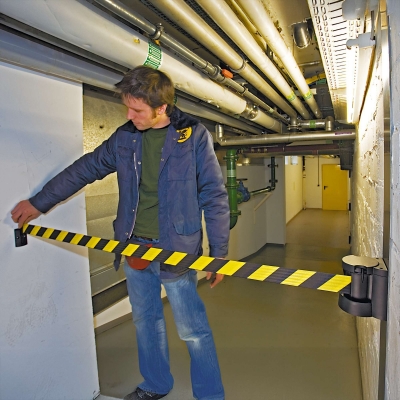

TRAFFIC-LINE Wall Mounted Belt Cartridge

The TRAFFIC-LINE Wall Mounted Belt Cartridge is the ideal solution for controlling access at fixed locations. In addition the Magnetic version has all the features of the standard cartridge with the additional benefit of even greater flexibility through the addition of a MAGNETIC fixing.

  • Easy to install.
  • Moulded in black hard wearing ABS.
  • Damped belt action for smooth retraction.
  • Unique bracket allows belt deployment in three directions.
  • Choose from 5 belt colours.

Applications:

Entrances, internal door-ways, stairs, corridors, aisles etc.

Specifications:

  • Cartridge height: 130mm
  • Cartridge depth: 110mm
  • Belt length: 3.0m or 4.0m
  • Belt width: 50mm

Accessories:

  • Wall mounted clip
  • Belt joining clip

Versions/models of product TRAFFIC-LINE Wall Mounted Belt Cartridge:

The table below shows you the available versions and models of product TRAFFIC-LINE Wall Mounted Belt Cartridge so that you can choose the product that best matches your needs.
Click the product number to view the data sheet of the selected version or model.



Do you have questions about TRAFFIC-LINE Wall Mounted Belt Cartridge?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

TRAFFIC-LINE Wall-mounted Belt Barrier

Height (mm)Depth (mm)Weight
(kg)
Belt colourBelt length (m)Article
130110 1.40 yellow/black striped3 179.18.124
1.50 4 179.23.024
1.40 red/white striped3 179.13.738
1.50 4 179.23.085
1.40 black/yellow/black3 179.19.708
1.50 4 179.29.337
1.40 black/red/black3 179.16.023
1.50 4 179.26.981
1.40 black/silver/black3 179.18.931
1.50 4 179.29.945

TRAFFIC-LINE Wall-mounted Belt Barrier,

Magnetic

Height (mm)Depth (mm)Weight
(kg)
Belt colourBelt length (m)Article
130110 1.50 black/yellow striped3 179.27.462
1.60 4 179.23.187
1.50 red/white striped3 179.27.835
1.60 4 179.21.407
1.50 black/yellow/black3 179.20.545
1.60 4 179.29.326
1.50 black/red/black3 179.25.944
1.60 4 179.23.919
1.50 black/silver/black3 179.21.084
1.60 4 179.27.176

Accessories

DescriptionWeight
(kg)
Article
Wall Receiver Clip 0.20 179.16.000
Magnetic Wall Clip 0.30 179.26.987
Belt Joiner 0.20 179.17.430
