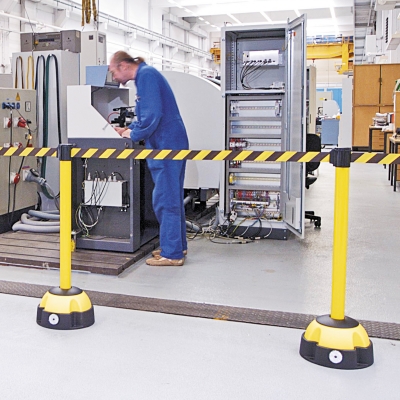

TRAFFIC-LINE Hi-Vis Belt Posts

TRAFFIC-LINE Hi-Vis Belt Posts provide a supremely flexible system that provides either permanent or temporary demarcation of pedestrian areas from vehicular traffic routes.

  • Quickly & easily deployed.
  • High visibility colour scheme.
  • Moulded bases with reflectors.
  • Temporary or permanent installation.
  • Base can be weighted with water or sand.
  • Powder coated aluminium posts.
  • Self tensioning mechanism.
  • Damped belt mechanism for controlled retraction.
  • Secure four point fixing for permanent installations. (Fixing bolts supplied separately).

Applications: Barriers, guidance, parking facilities, industrial premises, warehouses, outdoor facilities, etc.

Specifications:

  • Overall height: 985mm
  • Post dia.: 60mm
  • Post colours: Yellow or Red
  • Weight: 13kg (filled) - 2.4kg (empty)
  • Base dia.: 330mm
  • Base colours: Yellow/Black or Red/White
  • Belt length: 3m or 4m
  • Belt colours: Black/Yellow diagonal stripes, Red/White diagonal stripes, Yellow and Red

Versions/models of TRAFFIC-LINE Hi-Vis Belt Posts

The table below lists all versions and models of product TRAFFIC-LINE Hi-Vis Belt Posts.
Click the product number to view the product data sheet of the respective model or version.

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

TRAFFIC-LINE Hi-Vis Belt Posts

H (mm)Ø (mm)Base plate diameter (mm)Weight
(kg)
ColourBelt colourBelt length (mm)Article
98560330 2.90 yellowyellow/black3000 179.14.759
4000 179.22.511
yellow3000 179.17.353
4000 179.26.335
redred/white3000 179.19.970
4000 179.28.338
red3000 179.15.362
4000 179.24.575

Accessories

DescriptionWeight
(kg)
Article
Wall Receiver Clip 0.20 179.16.000
Magnetic Wall Clip 0.30 179.26.987
Belt Joiner 0.20 179.17.430

More images about TRAFFIC-LINE Hi-Vis Belt Posts


If you wish to know more about TRAFFIC-LINE Hi-Vis Belt Posts, please contact us.
Our experts will be able to assist you! You can contact us with all your queries.
