BLACK BULL HGV Wheel Guides

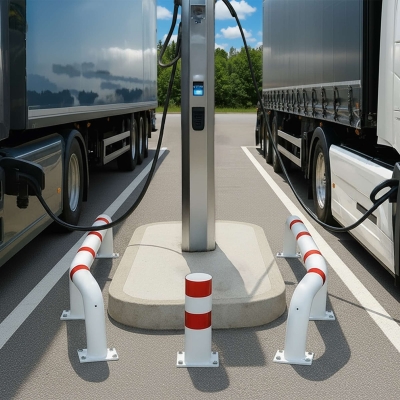

The BLACK BULL HGV Wheel Guides aid HGV trucks reversing onto loading bays safely and effectively, reducing the incidence of damage to premises and injury to personnel.

  • Set consists of two guides
  • Extremely strong construction
  • Quick and easy installation
  • Available in three different colour combinations

Specification:

Finishes:
Hot dip Galvanised
Hot dip Galvanised and Powder Coated

Colour:
Hot dip Galvanised with Red Reflective Bands
White (RAL 9016) with Red Reflective Bands
Yellow (RAL 1023) with Black Bands

Dimensions:
Length: 2,800mm
Height: 280mm
Diameter: 108mm
Wall Thickness: 3.9mm
Baseplate: 200 x 200 x 10mm

Fixing:
Bolt Down (24 bolts required per pair)

BLACK BULL HGV Wheel Guides - Variants



Do you have questions about BLACK BULL HGV Wheel Guides?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

BLACK BULL
HGV Wheel Guides
FinishHeight (mm)Diameter (mm)Overall length (mm)Weight
(kg)
Article
Hot Dip Galvanised2801082,800 92.50 204.24.389
Hot Dip Galvanised and Powder Coated 204.23.146
204.27.383
BLACK BULL HGV Parking Aid BollardFinishHeight (mm)Diameter (mm)Wall thickness (mm)Weight
(kg)
Article
Hot dip Galvanised5001594.5 17.80 204.23.278
Hot dip Galvanised and Powder Coated 204.22.040
204.27.333
