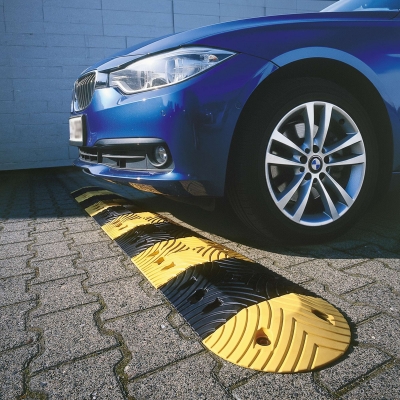

TOPSTOP Speed Reduction Ramps

TOPSTOP Speed Reduction Ramps are a proven system of speed reduction in sensitive areas.

  • Effective speed reduction.
  • Easily installed.
  • Two speed reduction systems – TOPSTOP-5 & TOPSTOP 10.
  • Contrasting colours and reflectors for visibility day & night.
  • Tough, durable rubber material.
  • Surface tread ensures grip even when wet.
  • Easily adjusted to site conditions.
  • Highly suitable for permanent and temporary installations.
  • Suitable for HGV’s.
Applications:

Hazardous situations such as exit ways, bends, loading bays, weigh bridges, pedestrian crossings, junctions, schools, manufacturing sites, depots, car parks in hospitals, public houses, hotels, sporting venues and other parking locations etc.

Specifications:

       TOPSTOP-5 (5mph)

  • Centre Section: 405mmL x 250mmB x 70mmH
  • End Section: 405mmL x 210mmB x 70mmH
  • Material: Rubber
  • Colours: Black or Yellow
  • End sections: Yellow only
  • Fixing bolts: 12/100mm Included

       TOPSTOP-10 (10mph)

  • Centre Section: 340mmL x 250mmB x 50mmH
  • End Section: 340mmL x 175mmB x 50mmH
  • Material: Rubber
  • Colours: Black or Yellow
  • End sections: Yellow only
  • Fixing bolts: 12/100mm Included

Options: Steel reinforcing tube



TOPSTOP Speed Reduction Ramps: Choose your version/model

The table below lists all versions and models of product TOPSTOP Speed Reduction Ramps.
To view the respective product data sheet, click the product number.

Important note about product prices:

This is a product information website, not a webshop.Version/model prices are not shown.

TOPSTOP-5

Recommended speed <5mph

TypeNumber of anchorsLength in travel direction (mm)Height (mm)Width (mm)ColourArticle
Standard element240570250black 280.10.797
240570250yellow 280.12.597
Connecting element240570210yellow 280.10.127

TOPSTOP-10

Recommended speed <10mph

TypeNumber of anchorsLength in travel direction (mm)Height (mm)Width (mm)ColourArticle
Standard element234050250black 280.11.430
234050250yellow 280.12.126
Connecting element234050175yellow 280.12.308

Accessories

Weight
(kg)
Article
Rawl Bolts 12 x 100mm 0.20 109.17.393
TOPSTOP-5 Speed Reduction Ramp - Reinforcing Tubular Rod - Per Metre 4.00 280.10.230
TOPSTOP-10 Speed Reduction Ramp - Reinforcing Tubular Rod - Per Metre 2.00 280.10.955
