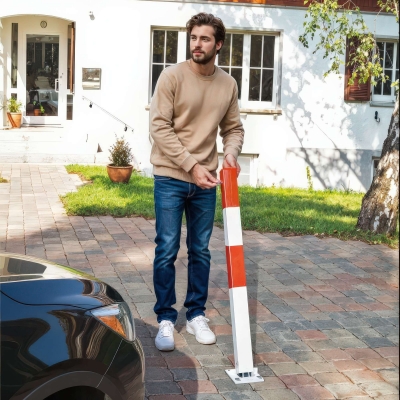

CONTROLLER A Drop Down Post

The CONTROLLER  A is an effective deterrent to the unauthorised use of restricted spaces. The CONTROLLER A post can be supplied with red reflective bands, and chain eyes can be specified if required (please advise direction of tilt when ordering).

  • Strong construction.
  • Hot dip galvanised for long life.
  • Cylinder lock - Keyed Alike.
  • Surface fix or sub-surface fix versions.
  • Colour options available.

Applications:

Driveways, car parks, restricted areas in industrial, private, commercial and public buildings etc.

Specifications:

  • Overall height (above ground): 1,000mm
  • Height lowered: 76mm
  • Post: 70 x 70mm

Note:- Sub-surface versions are set in concrete to depth of 330mm.

Versions/models of CONTROLLER A Drop Down Post

The table below lists all versions and models of product CONTROLLER A Drop Down Post.
To view the respective product data sheet, click the product number.

Productinfo Downloads:



Do you have questions about CONTROLLER A Drop Down Post?

Contact us via telephone (01453 852620) or Send an Email

Important note about product prices


This website is for product information only. Please contact us for partner/distributor details if you wish to purchase.

CONTROLLER A Drop Down Post,

Sub-Surface Fix,

Supplied with 2 keys

Locking mechanismFixtureOverall H (mm)Height above floor (mm)FinishColourWeight
(kg)
Article
Cylinder lockfor embedding in concrete with anchor sleeve1330330hot-dip galvanisedzinc coloured 9.30 116.12.751
hot-dip galvanised and powder-coatedred/white 116.12.098

CONTROLLER A Drop Down Post,

Surface Fix,

Supplied with 2 keys

Locking mechanismFixtureOverall H (mm)FinishColourWeight
(kg)
Article
Cylinder lockfor screw anchoring, with base plate1000hot-dip galvanisedzinc coloured 8.00 116.12.377
hot-dip galvanised and powder-coatedred/white 116.10.429

Accessories

DescriptionWeight
(kg)
Article
Rawl Bolts 8 x 100mm 0.20 109.17.393
Additional Keys 0.20 116.24.144
Befestigungslösungen für SperrpfostenDescriptionWeight
(kg)
Article
Rawl Bolts 8 x 100mm 0.20 109.17.393
Rawl Bolts 14 x 110mm 109.18.268
Through Bolt Anchors 12 x 110mm 0.30 109.24.665
Composite Anchor M12/160 - Including threaded rod, nut, washer and adhesive cartridge 0.25 109.27.334
Composite Anchor M16/190 - Including threaded rod, nut, washer and adhesive cartridge 0.40 109.25.253
FLEX Through-Bolt Anchor M12/110 3.60 109.21.961
